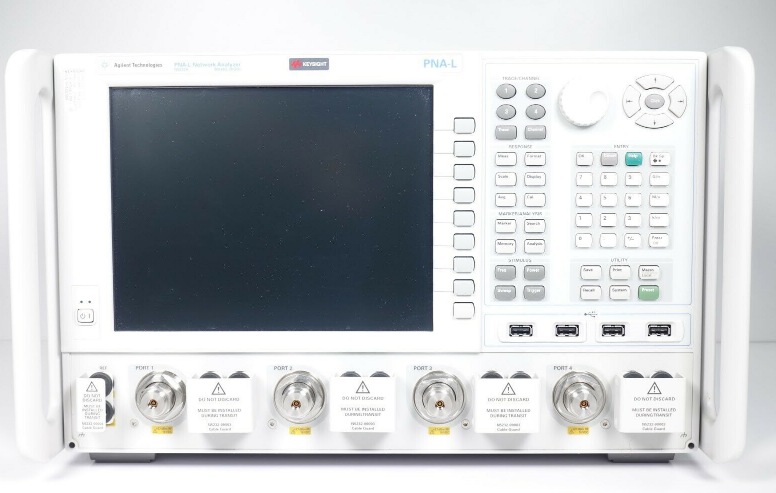

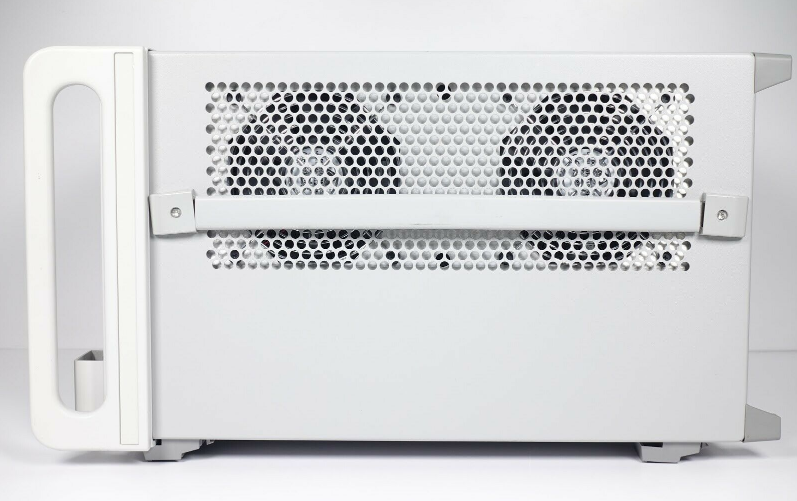

N5232A PNA-L network analyzer

 提示:點擊圖片可以放大
主要特性和功能
速度和性能的正確組合給您帶來競爭優勢
是德科技性能出眾的中檔 VNA 讓您實現更高的良率和更緊湊的保護頻帶
提供更高的吞吐量和可重復性,將卓越的設計轉化為有競爭力的產品
提供適應未來需求的功能,執行快速、精確的 S 參數測量
具有出色的性價比,可用于微波器件制造測試
最大頻率 20 GHz
動態范圍 133 dB
輸出功率 13 dBm
內置端口數量 2 或 4 端口
諧波 -18 dBc
掃描速度最高可達 201 個點 6 ms
網絡分析儀系列 PNA-L 經濟型
元器件
電纜
濾波器


Options

2 ports, single source, base configuration (Option
200)

2-ports, single source, base configuration (Option
200/210)

2 ports, single source, with configurable test set
and source attenuators (Option 216)

2-ports, single source, with extended power range
(Option 217)

2-ports, single source, with extended power range
and bias-tee (Option 219)

4-ports, dual source, base configuration
(Option 400/410)


4-ports, dual source, with configurable test set
(Option 401)

4-ports, dual source, with extended power range
(Option 417)

4-ports dual source, with extended power range
and bias-tee (Option 419)

4 ports, single source, base configuration (Option
400)

4 ports, single source, with configurable test set
and source attenuator (Option 416)

Automatic fixture removal (Option 007)

Time domain (Option 010)

Frequency offset (Option 080)

Scalar-calibrated converter measurements
(Option 082)

Vector- and scalar-calibrated converter
measurements (Option 083)

Embedded LO measurements (Option 084)

Gain compression application (Option 086)

Intermodulation distortion application
(Option 087)

Source phase control (Option 088)

Differential and I/Q devices application (Option 089)

Spectrum analyzer (Option 090)

Extended spectrum analyzer to 110 GHz
(Option 093)

Extended spectrum analyzer above 110 GHz
(Option 094)

Active Hot Parameters (Option 110/111)

Integrated true-mode stimulus application
(Option 460)

N-port capabilities (Option 551)

Noise figure measurements using standard receivers
(Option 028)

Fully-corrected noise figure measurements
(Option 029)

Pulsed-RF measurements (Option 008)


Add IF inputs for antenna and millimeterwave
(Option 020)

Add pulse modulator to internal first source
(Option 021)

Add pulse modulator to internal second source
(Option 022)

Add four internal pulse generators (Option 025)

Fast CW Sweep (Option 118)

Rack mount kit without handles (Option 1CM)

Rack mount kit with handles (Option 1CP)

Pulse I/O adapter (N1966A)
